Shipping Batteries – This product can only be shipped via ground and only within the US. See shipping policy for more info.

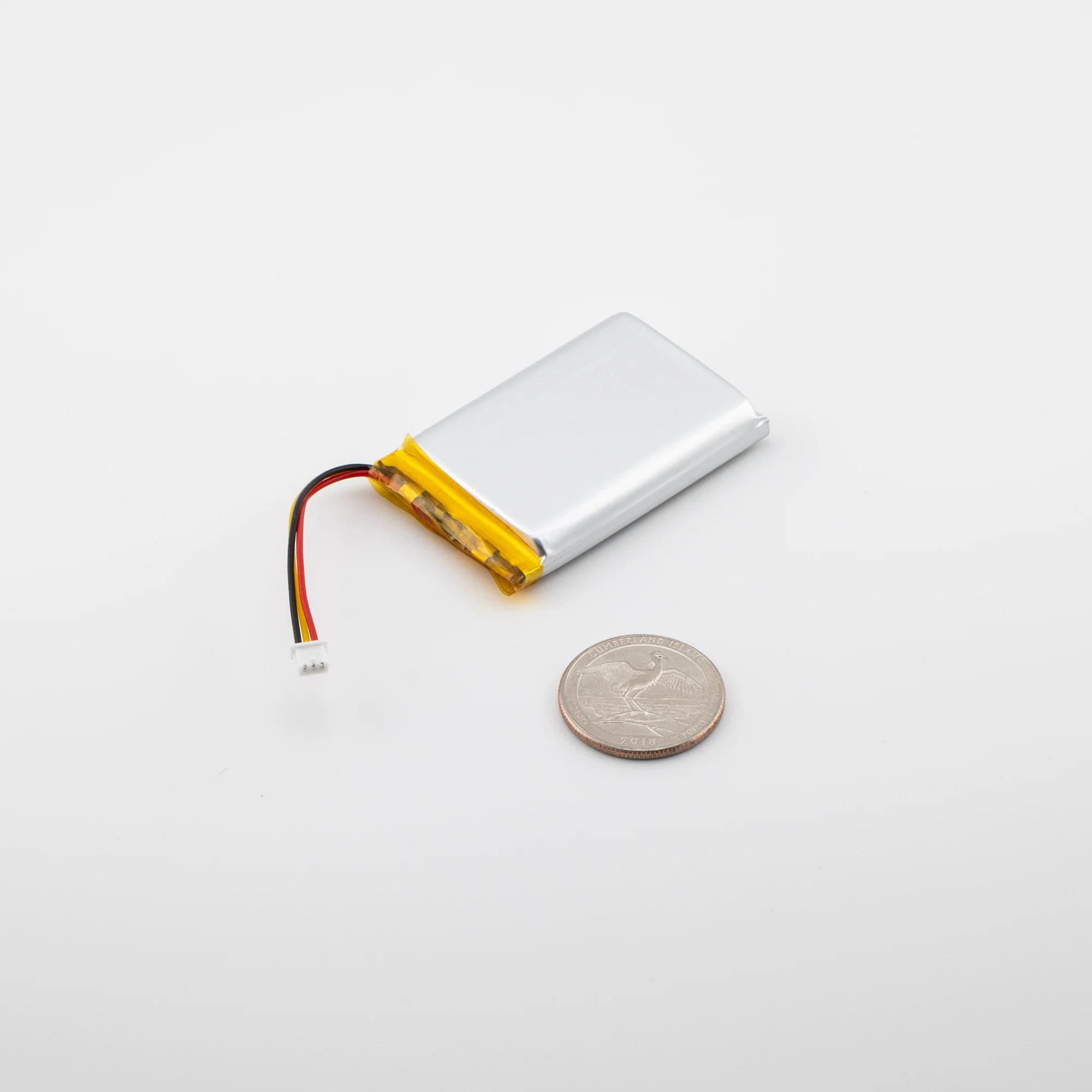

Rechargeable battery for the BASE Board System.

Details

Connector: 3 Pin Molex Picoblade (1.25mm Pitch)
Nominal Voltage: 3.7V
Rated Capacity: 1500mAh (5.55Wh)
Physical Size: 8mm Thick / 34mm Wide / 52mm Long
Weight: 28g

Technical Specs

Typical Capacity: 1500mAh
Minumum Capacity: 1455mAh
Charging Voltage Limit: 4.20V
Discharge Voltage: 3.0V
Cell Impedance: ≤ 65mΩ
Maximum Continuous Charge: 0.7C
Maximum Continuous Discharge: 1.0C
Operating Temperature: -10 to 60°C
NTC Thermistor: 10KΩ

Discharge Temperature

-10°C

0°C

23°C

Meshtastic Base Board System

BASE System Battery - BB15
